AUTHORIZED REPRESENTATIVE OF FREEFLIGHT SYSTEMS

---

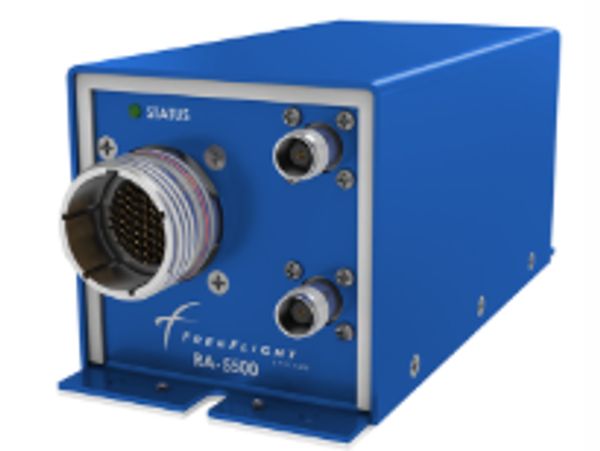

 Built to withstand 5G interference and harsh flight environments, TERRAIN SERIES radar altimeters provide accurate Altitude Above Ground Level (AGL) readings in low visibility, extreme weather, and RF-dense areas. With analog and digital interface options, retrofit-ready designs, and global certifications, these systems offer seamless integration and dependable performance for fixed-wing, rotorcraft, UAM/AAM, and autonomous aircraft.

• Efficient: 5G C-Band resistance with advanced RF filtering and DSP
• SWaP Optimized: Small, lightweight (≤ 1.3 lb / 0.59 kg), Low power
• Versatile: Analog output for legacy aircraft (RA-5500 and RA-6500)
• High-Fidelity: High update rate (25 Hz minimum) for real-time altitude data
• Retrofit-Ready: Minimal impact to existing antennas, indicators, and cabling
• Flexible: Multi-interface support (RS-485/422, RS-232, ARINC 429, 552A)
• Display-Friendly: Single install capable with glass displays or RAD-45/RAD-40
• MOPS Compliant: Meets AD 2023-10-02 and 2023-11-07 requirements
• Globally Approved: TSO-C87a, DO-160G, and DO-178C Level B certified

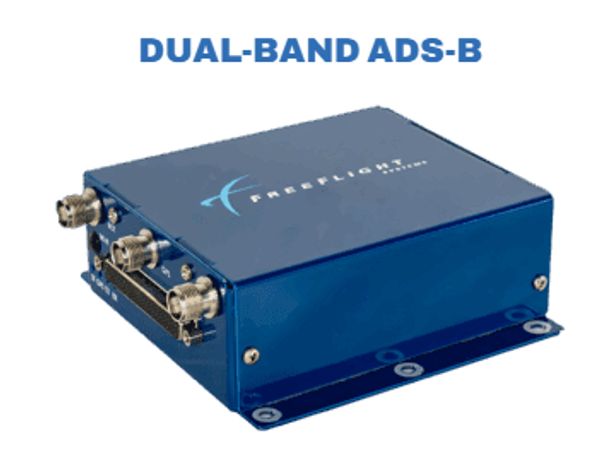

 FreeFlight Systems’ Dual-Band ADS-B solution is built with safety at its core—enhancing pilot situational awareness and supporting smarter in-flight decisions to meet the evolving demands of modern aviation. Our commitment to innovation led to the integration of TCAS II, delivering hybrid surveillance that strengthens aerial awareness across all phases of flight.

The Dual-band ADS-B Solution provides operators various models to match your operational and aircraft needs.  Compact, TSO-certified, and backed by hundreds of STCs, these systems install easily on both legacy and new aircraft. With flexible interface options and trusted OEM partnerships, they offer an easy retrofit solution with scalable performance and long-term value.

• TCAS II Integration: Fused traffic data enhances situational awareness.
• Optimized Routing: Real-time traffic supports smarter flight path planning, reducing go-arounds and fuel burn.
• OEM Compatibility: Proven integration with Pro Line 21 and Universal Avionics systems.
• App-Ready Cockpit: Compatible with ForeFlight, WingX Pro, iFly GPS, Jeppesen FlightDeck, and more.
• Rotorcraft-Ready: Lightweight and compact—ideal for space-constrained installations.

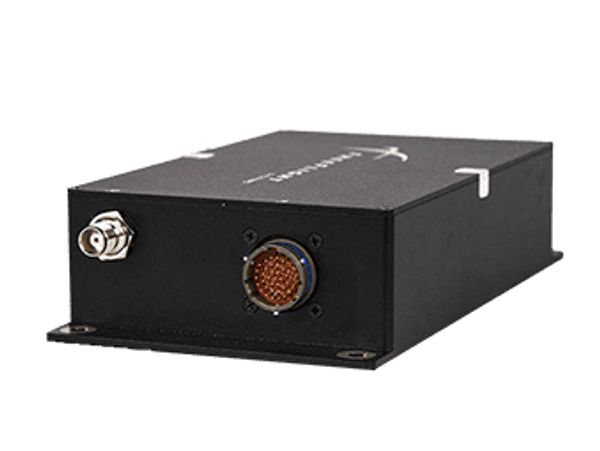

  Harnessing advanced GPS technology, the high-performance 1203C enhances situational awareness, reduces accident risks, and ensures reliable navigation for pilots and aircraft worldwide. It is specifically designed for retrofit applications, offering enduring reliability

• High Performance: 15-channel GPS engine with 5 Hz updates for precise navigation.
• SWaP Optimized: Small, lightweight, Low power .
• Regulatory Ready: FAA, ICAO, and Eurocontrol compliant.
• Precision-Enhanced: Supports KASS, South PAN, and other SBAS systems.
• Spoofing Recovery: Recovers from minor active spoofing events.
• RAIM Integrity: Receiver Autonomous Integrity Monitoring for uninterrupted navigation.
